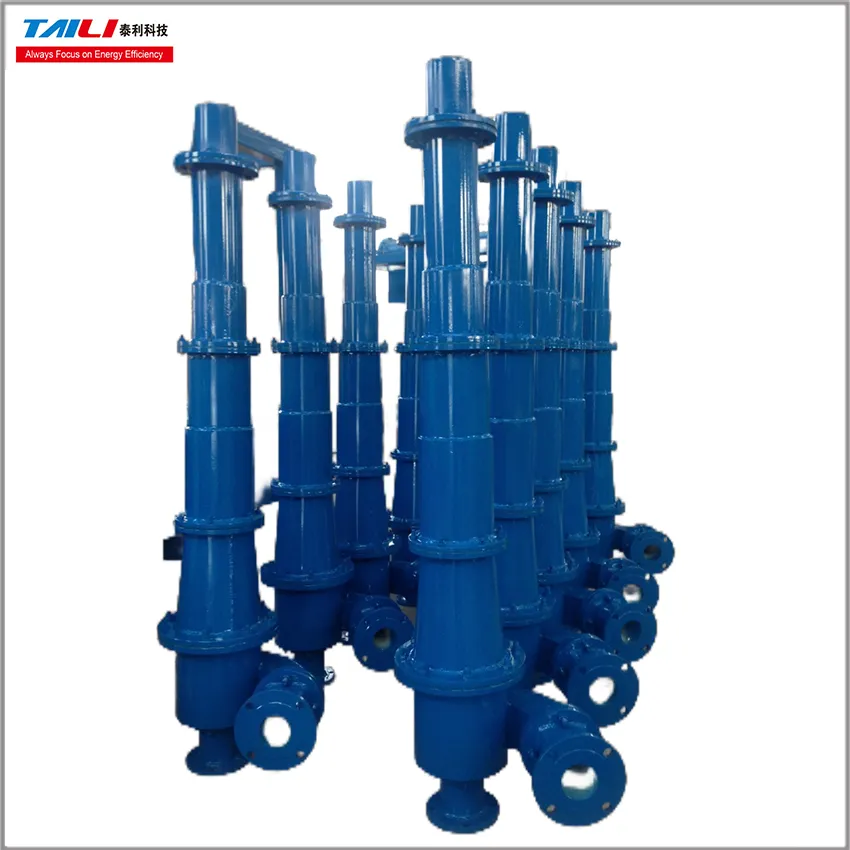

The high-efficiency concentrating and dewatering cyclone is a device that utilizes centrifugal force to classify, concentrate, and dehydrate minerals. It is widely used in mining processing. The following is a detailed introduction:

Operating Principle

Under pressure, ore slurry enters the cyclone shell in a specific direction through the feed pipe, creating a swirling motion. Centrifugal force propels coarse or dense particles in the slurry toward the periphery of the cyclone, ultimately discharging through the grit trap at the bottom as sediment. Fine particles, however, experience less centrifugal force and remain in the center of the swirling flow. They move upward with the liquid flow and are eventually discharged through the overflow pipe as overflow, achieving solid-liquid separation and particle classification.

Structural Features

Feed Structure: Different cyclone models have different feed structures. For example, the XC I model uses a three-dimensional volute feed structure, enabling both circumferential and axial feeding, eliminating turbulence near the overflow pipe. The XC II model uses an involute feed method, reducing turbulence upon entry into the cyclone and ensuring smoother fluid flow. Adjustment Devices: Some Hydrocyclones are equipped with special adjustment devices. For example, the XC I model features a wedge-shaped adjustment device that allows for quick online adjustment of the cyclone inlet size. The XC IV model is equipped with a compression sleeve that precisely adjusts the grit nozzle resistance, thereby adjusting the classification performance.

Inner Lining Material: To improve wear resistance and extend equipment life, the flow passages of Hydrocyclones are typically made of wear-resistant materials. For example, all flow passages of the XC IV model are made of wear-resistant rubber, and the inner lining of the XC III model is also mostly made of wear-resistant rubber.

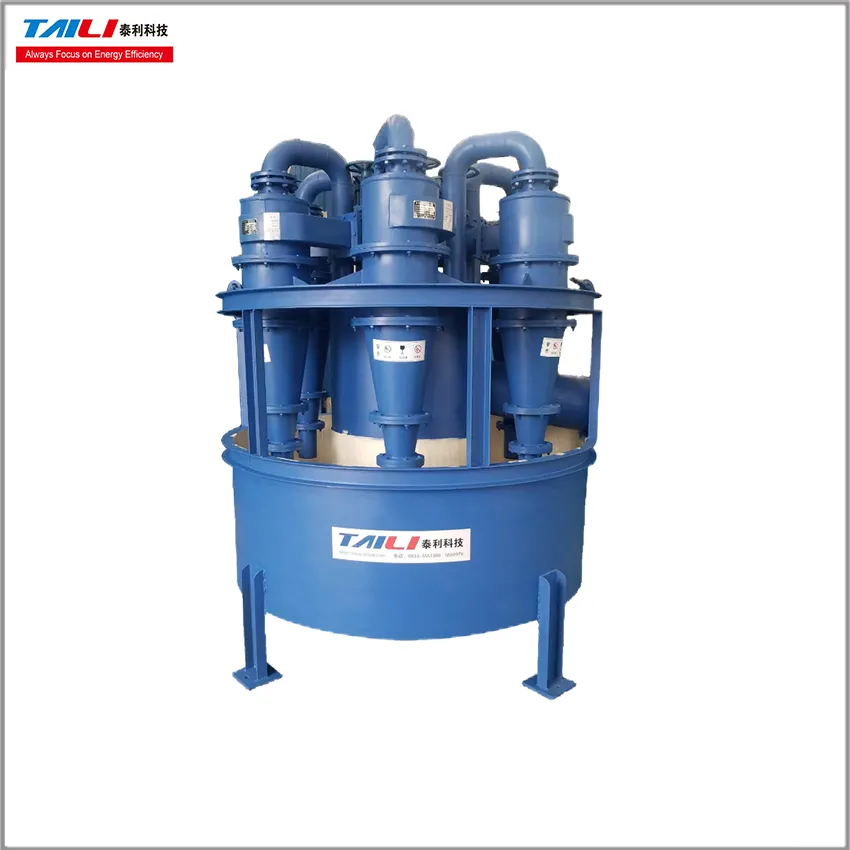

Models and Features

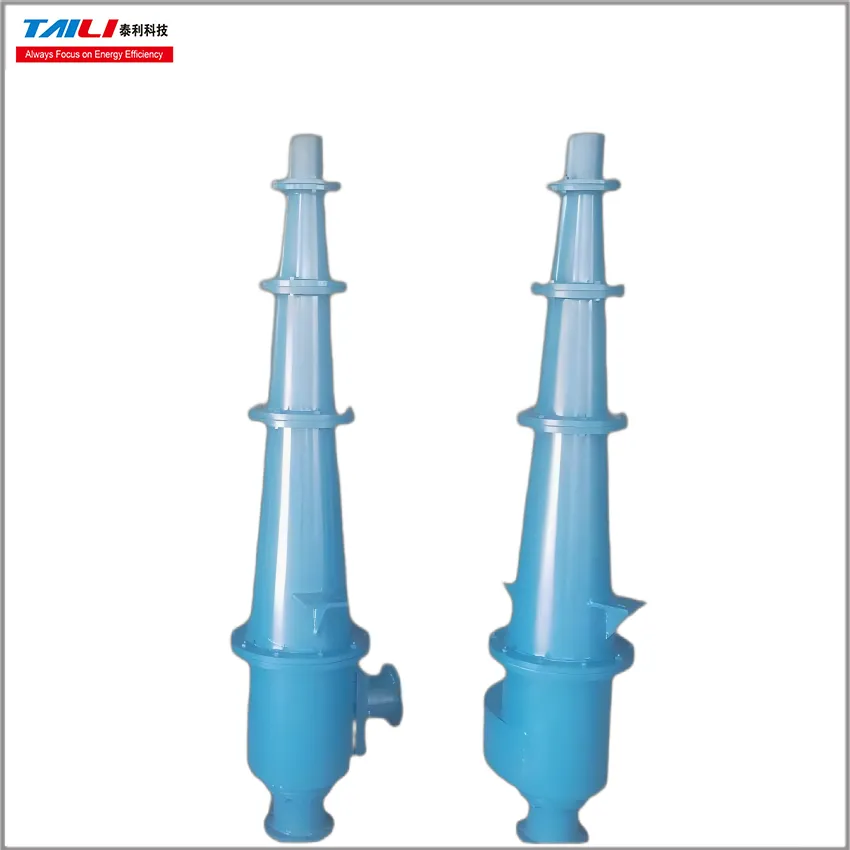

XC I hydrocyclone: More suitable for classification and dewatering operations. Its square tubular feed structure keeps the material close to the inner wall of the cyclone, resulting in low feed resistance and high dispersion force. The unique wedge-shaped adjustment device also improves classification efficiency.

XC II hydrocyclone: Suitable for classification and thickening operations, especially in dry tailings discharge applications. Its unique feed port structure and overflow pipe design significantly improve thickening efficiency and concentration, with underflow concentrations reaching 75%. XC III Hydrocyclone: Suitable for concentrating or classifying operations. It features a specially designed fishtail and siphon mechanism. Adjusting the siphon mechanism allows for higher underflow concentrations and lower overflow concentrations, with underflow concentrations reaching up to 85%.

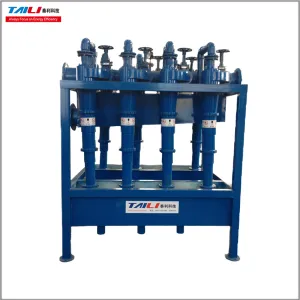

XC IV Hydrocyclone: Particularly suitable for classifying and dewatering fine-grained materials. Its rational design minimizes fluctuations in classification performance. All flow components are constructed of wear-resistant rubber for a long service life.

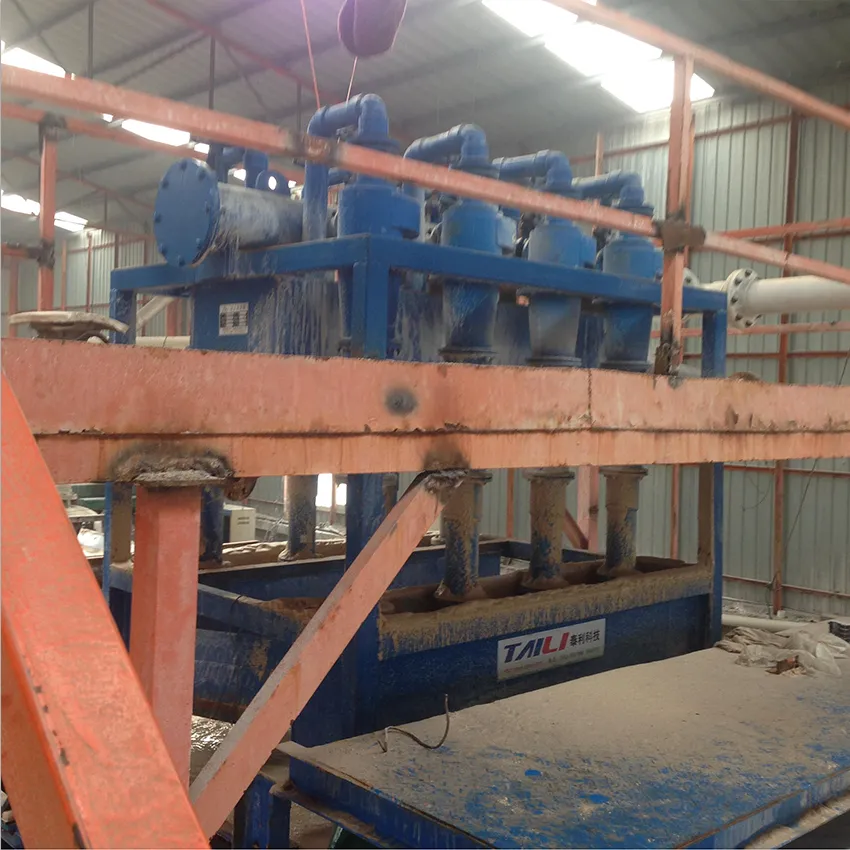

Performance Advantages

Efficient Separation: Utilizes centrifugal force to separate minerals, achieving high separation efficiency and effectively improving mineral recovery rates.

Simple Structure: The equipment boasts a simple structure, easy operation, and low maintenance, making it suitable for large-scale industrial applications.

Wide Application: Suitable for classifying, concentrating, and dewatering a wide range of minerals, processing slurries of varying particle sizes and concentrations.
