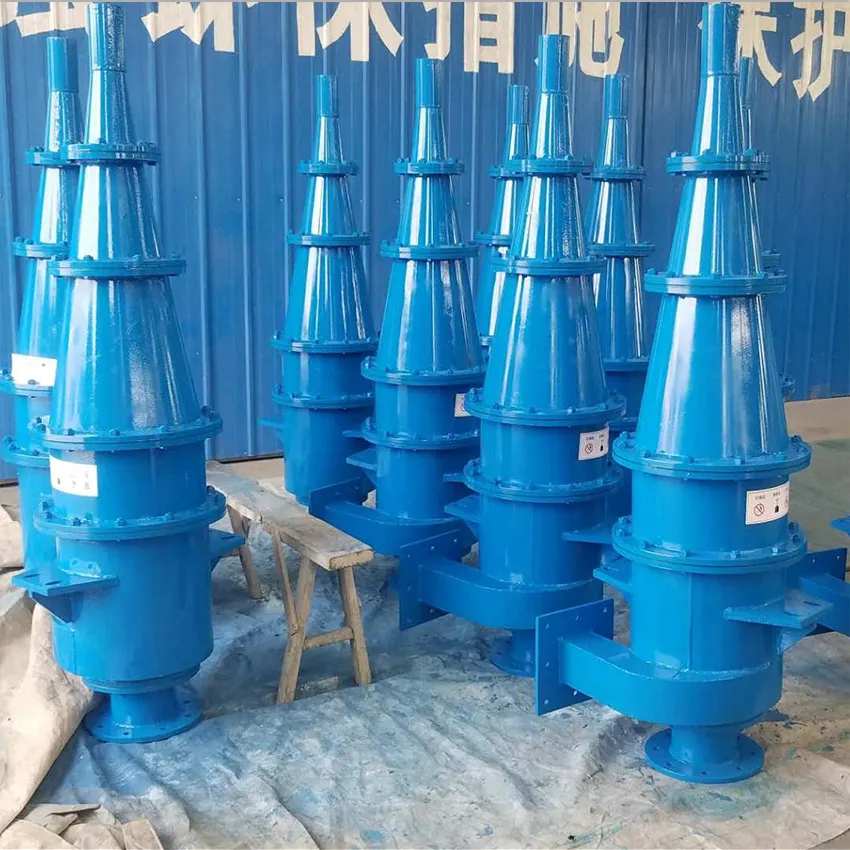

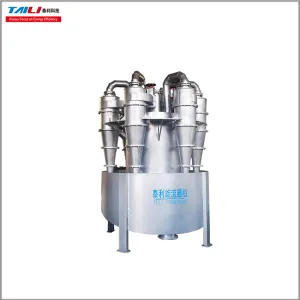

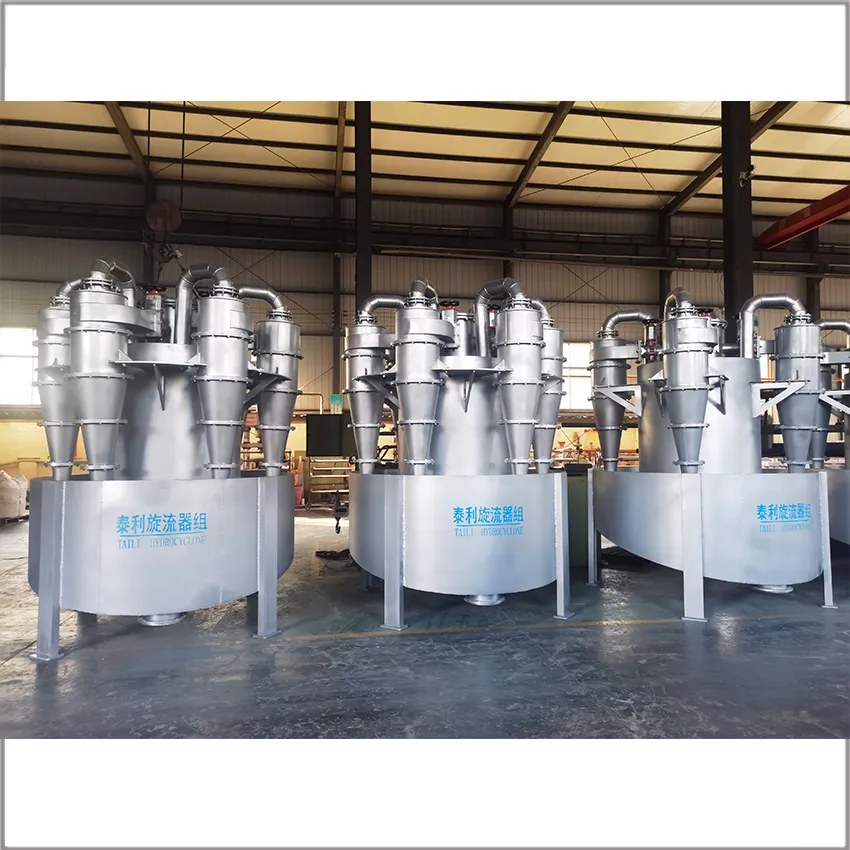

Mining Hydrocyclone Component  Hydrocyclone for Grinding primarily consists of a shell, feed pipe, overflow pipe, grit nozzle, and lining. The following is a detailed description of each component:

The shell is the main structural component of the cyclone and is typically made of wear-resistant materials, such as carbon steel lined with wear-resistant rubber or ceramic. A rotating flow channel is designed inside the shell, allowing the slurry to swirl within the shell, achieving particle classification.

The feed pipe is the passage through which the slurry enters the cyclone. Different cyclone models have different feed pipe designs. For example, the XC I model uses a volute feed pattern, the XC II model uses an involute feed pattern, and the XC III and XC IV models use a tangential feed pattern. These designs are intended to optimize the slurry flow path and enhance classification effectiveness.

The overflow pipe is located at the top of the cyclone and is used to discharge fine particles and liquid. The overflow pipe's insertion depth and diameter have a significant impact on classification effectiveness. If the insertion depth is too shallow, the overflow may contain an increased proportion of coarse particles; if the insertion depth is too deep, the overflow discharge efficiency may be affected. Grit nozzle: Located at the bottom of the cyclone, it discharges coarse particles. Some cyclone models, such as the XC IV, are equipped with an adjustable compression sleeve, allowing precise adjustment of the grit nozzle length, thereby improving classification accuracy. The diameter of the grit nozzle also affects classification efficiency and underflow concentration.

Liners: Typically made of materials such as wear-resistant rubber, high-aluminum ceramic, or silicon carbide, they effectively reduce equipment wear and extend service life. For example, Xinhai Mining's Cyclone linings are well-designed to maintain stable classification efficiency.
